To make these instructions easier to follow, acrylic with brown paper still on it is being used. If you peel the paper off of your pieces before gluing them together, you will have a transparent box through which you can see the electrical components.


Tools Needed:

Laser Cutter
Super Glue
Soldering Iron


Materials Needed:

Acrylic, 1/8″ Thick
Mono 1/4″ Guitar Jack
Jam Insert Nylon Lock Nut, 6-32
Machine Screw, 6-32 x 1/2″ Pan Head
Washer, #6

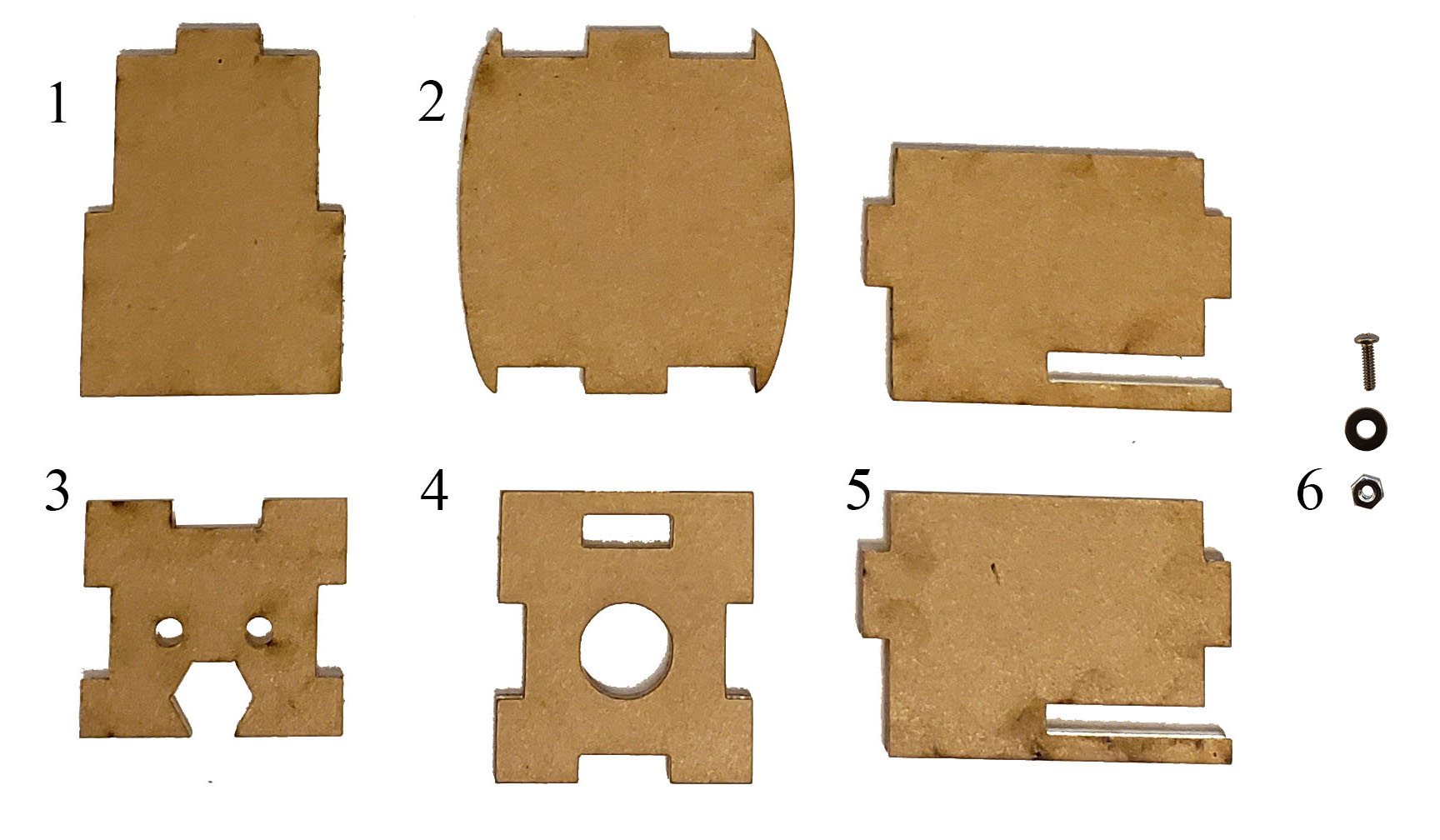

Parts Diagram:

  1. Bottom
  2. Top
  3. Inner Face
  4. Outer Face
  5. Side x 2
  6. Screw Set

Files:

Assembly Jig
Jack Box Cut File


Assembly Instructions
